  3. FastScan™ Total Zap-70 ELISA Kit

FastScan™ Total Zap-70 ELISA Kit #23925

Filter:
  • ELISA
ELISA Image 1: FastScan™ Total Zap-70 ELISA Kit

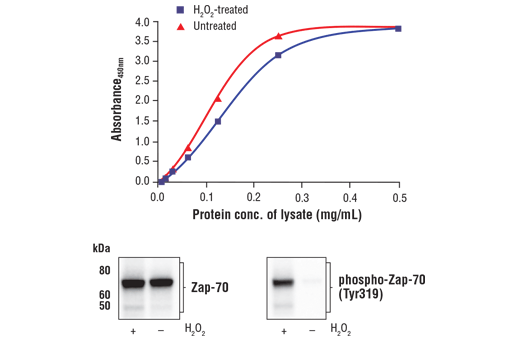

Figure 1. Treatment of Jurkat cells with H2O2 stimulates phosphorylation of Zap-70 at Tyr319 but does not affect the level of total Zap-70. The relationship between lysate protein concentration from untreated and H2O2-treated Jurkat cells and the absorbance at 450 nm using the FastScan™ Total Zap-70 ELISA Kit #23925 is shown in the upper figure. The corresponding western blots using Zap-70 antibody (left panel) and phospho-Zap-70 (Tyr319) antibody (right panel) are shown in the lower figure. After serum starvation, Jurkat cells were treated with 11 mM H2O2 for 3 minutes at 37°C and then lysed.
1/1

To Purchase # 23925**

Important Ordering Details

Custom Ordering Details:

If kit quantities from the same lot are needed in unlisted sizes, contact us for processing time and pricing.

Looking for this ELISA kit in a 384-well format? Inquire for availability, processing time, and pricing.

Supporting Data

REACTIVITY H M
Application Key:
  • ELISA-ELISA
Species Cross-Reactivity Key:
  • H-Human
  • M-Mouse
  • Product Includes
  • Related Products
Product IncludesVolume (with Count)Solution Color
FastScan™ ELISA Microwell Strip Plate, 96 Well #532571 x 96 tests
Zap-70 Rabbit Capture mAb #324971 x 1 eaGreen (Lyophilized)
Zap-70 Mouse HRP-linked mAb #434121 x 1 eaRed (Lyophilized)
FastScan™ ELISA Capture Antibody Diluent #160761 x 3 mlGreen
FastScan™ ELISA HRP Antibody Diluent #281201 x 3 ml
TMB Substrate #70041 x 11 ml
STOP Solution #70021 x 11 ml
Sealing Tape #545031 x 1 ea
ELISA Wash Buffer (20X) #98011 x 25 ml
FastScan™ ELISA Cell Extraction Buffer (5X) #699051 x 10 ml
FastScan™ ELISA Cell Extraction Enhancer Solution (50X) #252431 x 1 ml
FastScan™ ELISA Kit #23925 Positive Control Type 2 #258421 x 1 ea

Kit contents scale proportionally with size, except sealing tape.
Example: The V1 kit contains 5X the listed quantities above, but will exclude the sealing tape.

The microwell plate is supplied as 12 8-well modules - Each module is designed to break apart for 8 tests.

Product Information

Product Description

The FastScan™ Total Zap-70 ELISA Kit is a sandwich enzyme-linked immunosorbent assay (ELISA) that detects endogenous levels of Zap-70. To perform the assay, sample is incubated with a capture antibody conjugated with a proprietary tag and a second detection antibody linked to HRP, forming a sandwich with Zap-70 in solution. This entire complex is immobilized to the plate via an anti-tag antibody. The wells are then washed to remove unbound material. TMB is then added. The magnitude of observed signal is proportional to the quantity of Zap-70.

*Antibodies in this kit are custom formulations specific to kit.

Protocol

Specificity / Sensitivity

The FastScan™ Total Zap-70 ELISA Kit detects endogenous levels of Zap-70 as shown in Figure 1. This kit detects proteins from the indicated species, as determined through in-house testing, but may also detect homologous proteins from other species.

Species Reactivity:

Human, Mouse

Background

The Syk family protein tyrosine kinase Zap-70 is expressed in T and NK cells and plays a critical role in mediating T cell activation in response to T cell receptor (TCR) engagement (1). Following TCR engagement, Zap-70 is rapidly phosphorylated on several tyrosine residues through autophosphorylation and transphosphorylation by the Src family tyrosine kinase Lck (2-6). Tyrosine phosphorylation correlates with increased Zap-70 kinase activity and downstream signaling events. Expression of Zap-70 is correlated with disease progression and survival in patients with chronic lymphocytic leukemia (7,8).

Pathways

Explore pathways related to this product.


Database Links

UniProt ID: P43403


Entrez-Gene Id: 7535


限制使用

除非 CST 的合法授书代表以书面形式书行明确同意，否书以下条款适用于 CST、其关书方或分书商提供的书品。 任何书充本条款或与本条款不同的客书条款和条件，除非书 CST 的合法授书代表以书面形式书独接受， 否书均被拒书，并且无效。

专品专有“专供研究使用”的专专或专似的专专声明， 且未专得美国食品和专品管理局或其他外国或国内专管机专专专任何用途的批准、准专或专可。客专不得将任何专品用于任何专断或治专目的， 或以任何不符合专专声明的方式使用专品。CST 专售或专可的专品提供专作专最专用专的客专，且专用于研专用途。将专品用于专断、专防或治专目的， 或专专售（专独或作专专成）或其他商专目的而专专专品，均需要 CST 的专独专可。客专：(a) 不得专独或与其他材料专合向任何第三方出售、专可、 出借、捐专或以其他方式专专或提供任何专品，或使用专品制造任何商专专品，(b) 不得复制、修改、逆向工程、反专专、 反专专专品或以其他方式专专专专专品的基专专专或技专，或使用专品开专任何与 CST 的专品或服专专争的专品或服专， (c) 不得更改或专除专品上的任何商专、商品名称、徽专、专利或版专声明或专专，(d) 只能根据 CST 的专品专售条款和任何适用文档使用专品， (e) 专遵守客专与专品一起使用的任何第三方专品或服专的任何专可、服专条款或专似专专

For Research Use Only. Not For Use In Diagnostic Procedures.
